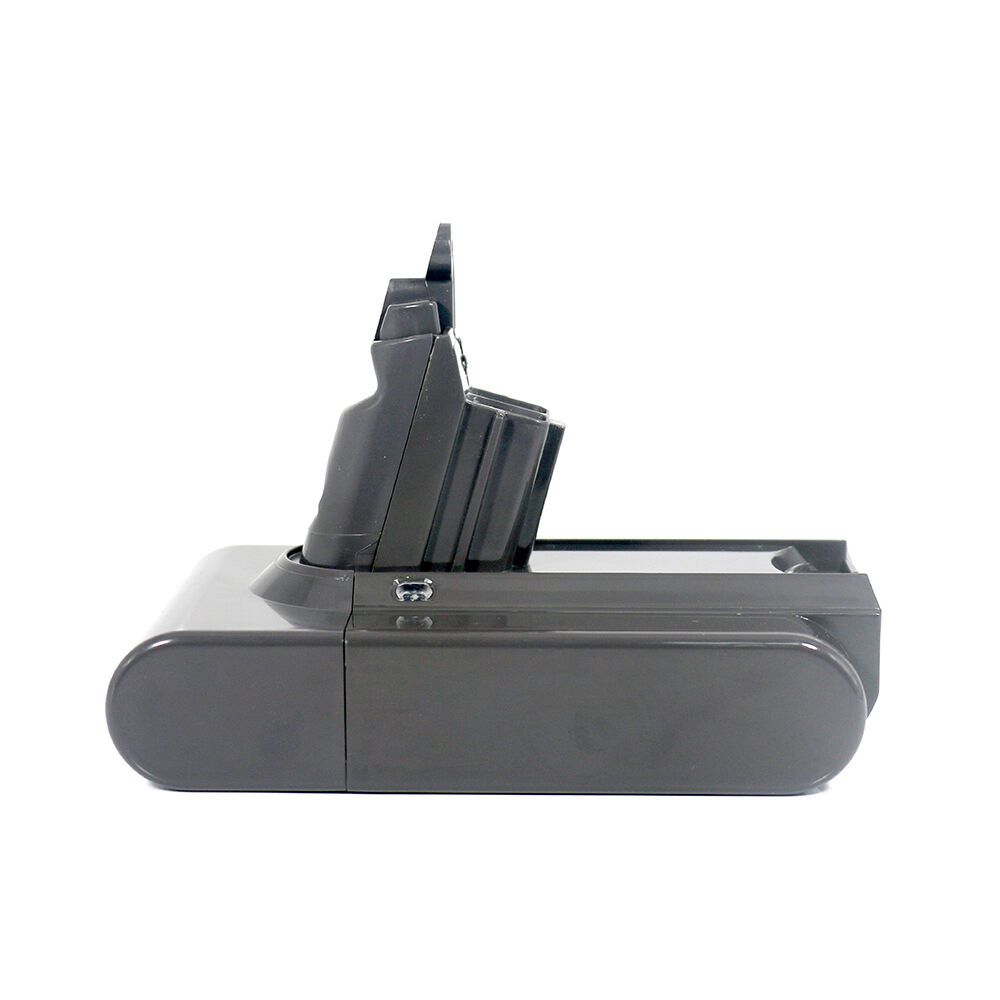

21.6V High-Drain Lithium Battery Pack for Professional Power Tools & Equipment
Direct Answer: A 21.6V lithium-ion battery pack is a 6-cell series (6S) high-voltage power system delivering a nominal voltage of 21.6V (3.6V per cell) and a maximum charging cutoff voltage of 25.2V (4.2V per cell). Engineered for heavy-duty cordless tools, industrial rotary hammer drills, and high-performance commercial cordless vacuums, the 21.6V platform provides 20% higher electrical operating potential than standard 18V/20V systems, reducing motor operating amperage, curbing resistive heat dissipation, and sustaining intense mechanical workloads.
1. The Electrical Advantages of 21.6V (6S) Architecture
Direct Answer: Stepping up from a 5S (18V) to a 6S (21.6V) battery architecture allows high-torque brushless motors to produce equivalent mechanical power with 16.7% less current draw, significantly cutting internal thermal losses ($P_{\text{loss}} = I^2R$) in motor windings, trigger switches, and battery interconnects.
In demanding industrial applications—such as continuous core drilling in masonry, heavy structural steel fastening, and high-CFM dust extraction—heat is the primary enemy of tool longevity and runtime. When operating at higher voltage, the power equation $P = V \times I$ ensures that tool motors run cooler and battery cells remain within their optimal chemical efficiency curve. Review voltage matching principles in our technical guide on how to match battery voltage with power tool platforms.
| Engineering Metric | Standard 18.0V / 20V Max (5S Pack) | Industrial 21.6V / 25.2V Max (6S Pack) | Operational Advantage |
|---|---|---|---|
| Series Cell Count | 5 cells in series (5S) | 6 cells in series (6S) | +20% electrical potential |
| Nominal / Max Voltage | 18.0V DC / 20.0V DC | 21.6V DC / 25.2V DC | Higher sustained motor RPM under load |
| Current at 500W Motor Load | 27.8 Amperes | 23.1 Amperes (17% lower current) | 31% lower $I^2R$ resistive heating in wiring |
| Common Capacity Options | 2.0Ah, 4.0Ah, 5.0Ah | 2.5Ah (6S1P), 5.0Ah (6S2P), 6.0Ah | Up to 129.6 Wh total energy storage |
| Cell Configuration | 18650 or 21700 high-drain | High-drain 18650 or 21700 (25A+ rating) | High pulse power for high-torque gearboxes |
2. Internal Cell Selection & 6S BMS Circuit Protection
Direct Answer: A 6S battery system operates under higher series voltage stress than 5S packs, requiring specialized 6-stage balancing BMS protection ICs, low-RDS(on) power MOSFET switches rated for >40V, and per-cell voltage sampling with <10mV resolution.
In low-quality aftermarket 21.6V batteries, cheap generic circuit boards often omit active cell balancing. Over 50 to 100 charge cycles, small discrepancies in cell self-discharge rates compound, causing one series pair to overcharge while another starves. GeB 21.6V packs incorporate precision electronics:
- High-Rate Cylindrical Cells: Utilizing premium Grade-A cells with internal AC resistance below 12mΩ, capable of sustaining 25A to 35A continuous discharge without voltage sag.
- 6-Stage Passive Cell Balancing: Integrated bypass resistors bleed excess voltage from higher-potential cells during the constant-voltage charging tail, maintaining tight pack balance.
- Dual High-Amp N-Channel MOSFETs: Heavy-duty low-resistance power switches mounted on aluminum thermal spreaders handle up to 70A peak motor inrush currents without latching faults.
- Multi-Sensor Thermal Network: NTC thermistors placed directly between center cells monitor internal core temperatures, cutting charge circuits at 45°C and discharge at 65°C.
3. Key Industrial Equipment Applications
The 21.6V battery format is widely utilized across specialized industrial and professional tools requiring sustained rotational torque and airflow:
| Equipment Category | Working Demand | 21.6V Battery Advantage |
|---|---|---|
| Industrial Rotary Hammers | High impact energy (2.5J–4.0J) and masonry vibration | Reinforced internal ribbing prevents weld fractures; delivers full impact frequency |
| Cordless Vacuum Cleaners & Blowers | High RPM turbine suction fans running continuously for 20–30 min | Lower operating temperature prevents thermal shutdown during long duty cycles |
| Hydraulic Pipe Crimpers & Cutters | High hydraulic pump pressure spikes (up to 60kN force) | High instantaneous pulse current without dropping below low-voltage threshold |
| Professional Auto Detailing Tools | Rotary polishers running under constant friction drag | Stable 21.6V output maintains steady pad rotational RPM without bogging down |
4. Procurement Checklist for 21.6V Replacement Packs
When selecting 21.6V replacement batteries for commercial inventory or equipment fleet retrofitting, ensure candidate suppliers provide:
- Verified Continuous Current Rating: Verify that the pack can sustain its full rated amperage for a 100% depth-of-discharge cycle without exceeding 60°C outer surface temperature.
- Drop and Mechanical Shock Integrity: Heavy 6S packs carry significant kinetic energy when dropped; housings must be molded from high-impact PC+ABS with reinforced internal support struts.
- Charger Compatibility: Ensure terminal pinouts correctly communicate with specialized 25.2V CC/CV OEM and aftermarket chargers. Review compatibility troubleshooting in our guide on common causes of replacement battery compatibility problems.
- Full UN38.3 Transport Testing: 6S packs exceed 50Wh to 100Wh; verified Class 9 transport test reports are legally required for commercial air and ocean shipping.
Frequently Asked Questions (FAQ)
Can a 21.6V battery be charged on an 18V/20V charger?
No. An 18V/20V charger has a maximum charge termination voltage of 21.0V (4.2V x 5 cells). A 21.6V (6S) pack requires a charger that outputs up to 25.2V (4.2V x 6 cells) to achieve full capacity. Using an 18V charger will leave a 21.6V battery severely undercharged.
Can a 21.6V battery damage an 18V tool?
Never connect a 21.6V battery to a tool designed strictly for 18V/20V systems unless specifically indicated by the manufacturer. While some brushless motors tolerate higher voltages, tool controllers and MOSFET switches designed for 20V peak may experience overvoltage damage.
What is the lifespan of a GeB 21.6V industrial battery pack?
When constructed with Grade-A high-drain cells and managed by GeB’s balanced BMS circuitry, the pack typically delivers 600 to 800 full charge/discharge cycles before capacity drops below 75% of initial nominal rating.
Looking for Reliable OEM/ODM Replacement Batteries for Your Tool Fleet?
As a professional lithium-ion battery manufacturer with over 16 years of engineering experience, GeB Power (General Electronics Technology Co., Ltd.) provides high-grade, direct-fit replacement battery packs and custom battery solutions for power tool distributors, fleet contractors, and equipment brands worldwide.
- Tier-1 High-Drain Cells: Premium 18650 and 21700 lithium cells for maximum discharge rate and prolonged runtime.
- Intelligent BMS Protection: Multi-layer circuitry preventing overcharge, over-discharge, short circuit, and thermal runaway.
- Global Certifications: Fully certified to CE, UL 2054, UN38.3, RoHS, and MSDS transport standards.
- Flexible MOQ & Fast Prototyping: Customized housing colors, labeling, private labeling (OEM), and fast-turnaround sampling.
Get a factory-direct quote or request evaluation samples today: Send your required voltage, capacity, tool models, and estimated order quantity to our engineering team at info@gebattery.co or submit your inquiry via our Request a Quote page.
