Is Your Power Tool Battery Dead? A 5-Step Troubleshooting Guide
Direct Answer: When a cordless power tool fails to start, the issue is not always a dead battery. It could stem from oxidized terminal contacts, a blown tool trigger switch, charger handshake failure, or a BMS (Battery Management System) low-voltage sleep lock. Testing terminal voltage with a digital multimeter is the quickest way to isolate whether the battery, tool, or charger is at fault.
1. Fault Isolation Matrix: Battery vs Tool vs Charger
Direct Answer: Cross-testing the battery on a second tool and measuring terminal voltage under load isolates the root cause within minutes.
| Observed Symptom | Most Likely Fault | Underlying Root Cause | Corrective Action |
|---|---|---|---|
| LED gauge shows 3 bars, tool does nothing | Tool / Switch | Worn motor brushes or blown trigger MOSFET | Test pack in a second tool to confirm output. |
| Charger flashes red error code immediately | Battery / Charger | Over-discharged cell (<2.5V) or dirty thermistor pin | Clean terminals with alcohol; check voltage. |
| Tool runs for 2 seconds and cuts out under load | Battery Pack | High internal resistance in one cell group (voltage sag) | Test under load or replace the pack. |
| Battery will not accept charge on any charger | Battery BMS | BMS protection circuit tripped due to deep discharge | Attempt low-current trickle wake-up. |
| Charger light never illuminates when plugged in | Charger | Blown internal AC fuse or damaged power cord | Test wall outlet; service or replace charger. |
2. Multimeter Voltage Testing & Interpretation

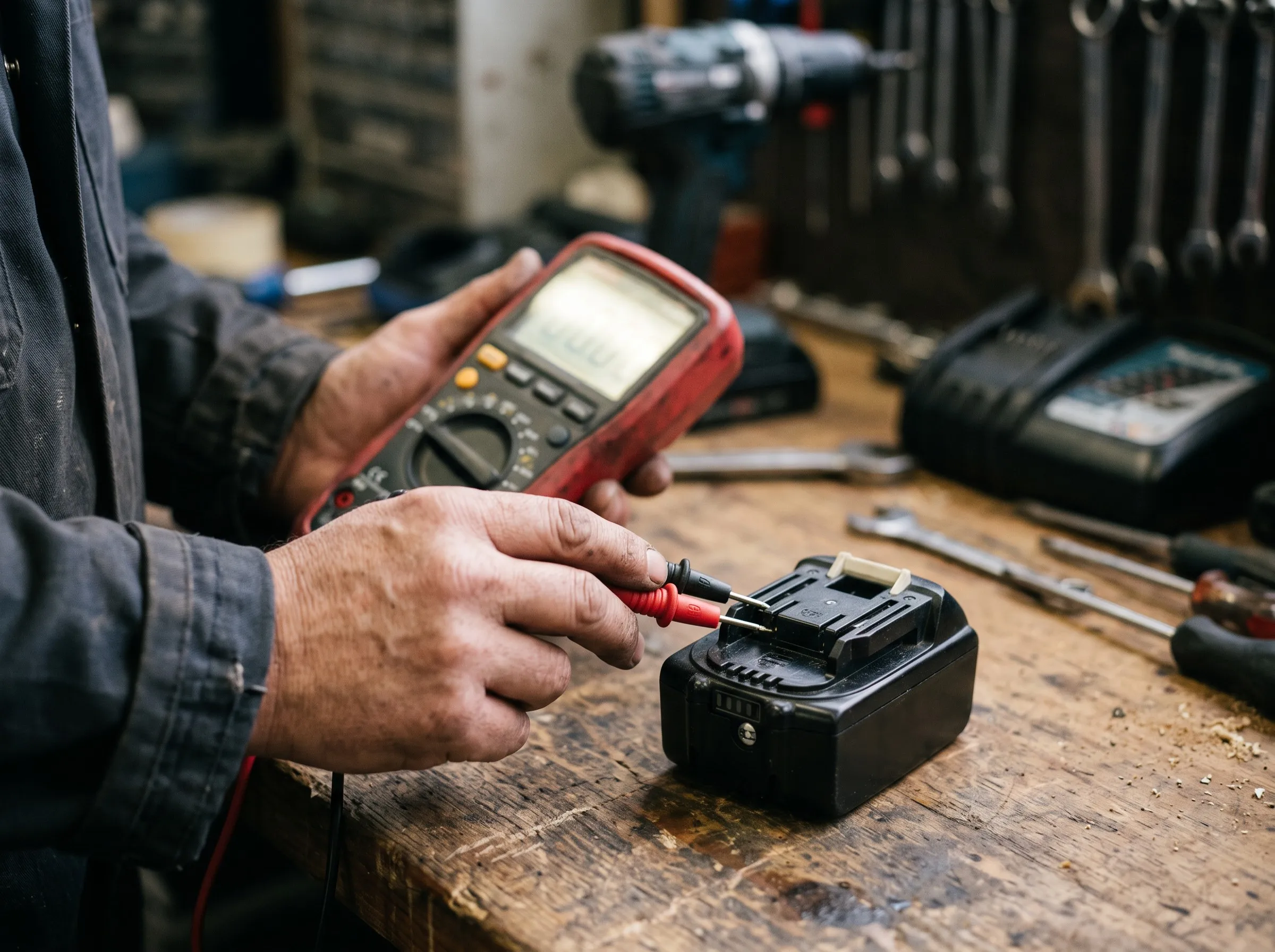

Direct Answer: Set your digital multimeter to DC 20V/200V range and probe the (+) and (-) terminals to determine pack health based on voltage thresholds.
| Battery Platform | Full Charge Voltage | Nominal Voltage | Low Cutoff (Recharge) | Deep Discharge (Sleeping BMS) |
|---|---|---|---|---|
| 12V (3S Li-ion) | 12.6V DC | 10.8V DC | 9.0V – 10.0V DC | < 7.5V DC |
| 18V / 20V Max (5S) | 20.5V – 21.0V DC | 18.0V DC | 15.0V – 16.0V DC | < 12.5V DC |
| 24V (6S Li-ion) | 25.2V DC | 21.6V DC | 18.0V – 19.2V DC | < 15.0V DC |
| 54V / 60V Max (15S) | 60.0V – 63.0V DC | 54.0V DC | 45.0V – 48.0V DC | < 37.5V DC |
3. Step-by-Step Troubleshooting Workflow
- Step 1: Clean Terminal Blades: Clean oxidation and jobsite grime off both tool and battery contacts using 90%+ isopropyl alcohol and a small brass wire brush.
- Step 2: Perform Cross-Testing: Insert the suspect battery into another tool of the same voltage platform. If the second tool runs, the issue lies in the first tool’s trigger switch or motor.
- Step 3: Measure Terminal DC Voltage: Use a multimeter to verify whether voltage matches expected nominal levels from the table above.
- Step 4: Test Thermistor (T Pin) Resistance: Probe between the (-) terminal and the (T) pin. A normal reading is ~10kΩ at room temperature (25°C). An open circuit indicates a damaged temperature sensor.
- Step 5: Inspect for Physical Swelling or Odor: If the pack feels swollen or emits a sweet chemical smell, cease use immediately and store in a fireproof container.
4. Frequently Asked Questions (FAQ)
Q1: Can a sleeping lithium-ion battery be revived safely?
If the pack recently tripped its low-voltage BMS cutoff, a low-current trickle charge can restore it. However, if individual cells have sat at 0V for months, internal copper dendrites make reviving unsafe.
Q2: Why does my battery show 4 full LED bars but cut out immediately under load?
This symptom indicates high internal resistance (IR) in one or more cell groups. The pack maintains open-circuit voltage but suffers instant voltage sag when motor current is drawn.
Technical references: Learn more about multimeter testing and battery internal resistance at Battery University Guide on Internal Resistance and UL Battery Safety Test Standards.
