20V Lithium Replacement Battery for Cordless Power Tools: Specifications & Buyer’s Guide

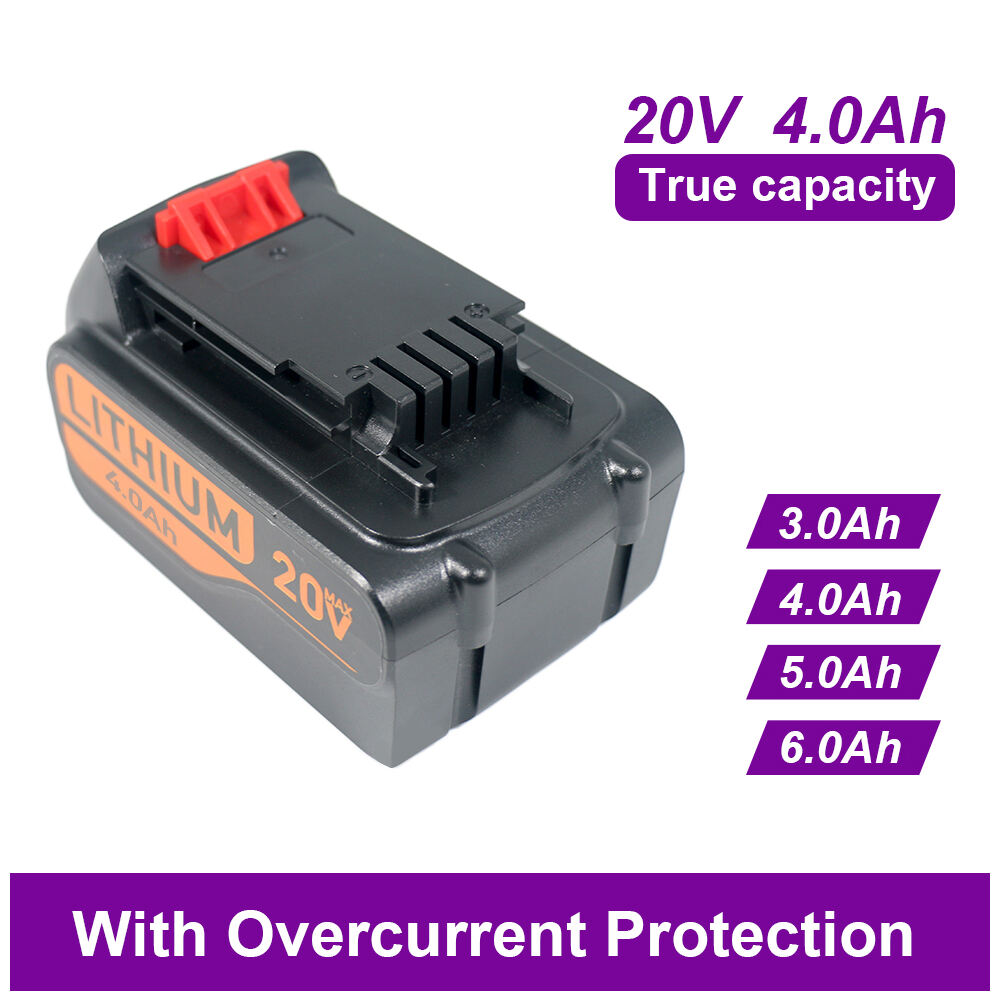

Direct Answer: A 20V Max cordless power tool battery is a 5-cell series (5S) lithium-ion battery system delivering a maximum initial terminal voltage of 20.0V and a nominal working voltage of 18.0V (3.6V per cell). High-performance replacement 20V battery packs rely on Tier-1 Grade-A cylindrical cells (18650 or 21700), high-conductivity nickel busbars, and micro-welded contacts coupled with an intelligent Battery Management System (BMS) that actively prevents overcharge, over-discharge, short circuit, and cell thermal runaway.
1. Demystifying 20V MAX vs 18V Nominal: Electrical Chemistry
Direct Answer: In cordless lithium-ion power tool systems, “20V MAX” and “18V” refer to the exact same 5-cell series (5S) battery architecture; 20V indicates the peak open-circuit voltage measured immediately after charging (4.0V to 4.2V per cell), while 18V represents the nominal operating voltage under electrical load (3.6V per cell).
In international marketing and equipment specifications, tool brands often adopt different terminology to designate their primary slide-pack platforms. For example, brands like DEWALT and Porter-Cable commonly label their platforms as 20V MAX, whereas brands such as Makita, Bosch, and Milwaukee identify their equivalent 5S platforms as 18V. For procurement managers and equipment fleet supervisors, understanding this technical parity prevents costly ordering errors and inventory misallocations.
| Battery Engineering Parameter | 5S1P Architecture (Compact 2.0Ah–2.5Ah) | 5S2P Architecture (Extended 4.0Ah–5.0Ah) | 5S2P High-Output (6.0Ah–8.0Ah 21700) |
|---|---|---|---|
| Cell Type & Count | 5 x 18650 High-Drain Cells | 10 x 18650 High-Drain Cells | 10 x 21700 High-Capacity Cells |
| Nominal / Peak Voltage | 18.0V DC / 20.0V DC Max | 18.0V DC / 20.0V DC Max | 18.0V DC / 20.0V DC Max |
| Continuous Discharge Current | 20A – 25A continuous | 35A – 45A continuous | 50A – 65A continuous |
| Total Energy Capacity | 36 Wh – 45 Wh | 72 Wh – 90 Wh | 108 Wh – 144 Wh |
| Pack Net Weight | 340g ± 15g (Ultra-compact) | 620g ± 25g (Balanced workhorse) | 890g ± 35g (Heavy continuous duty) |
| Optimal Tool Applications | Impact drivers, compact drill-drivers, multi-tools | Hammer drills, circular saws, angle grinders | Table saws, rotary hammers, outdoor power gear |
2. Pack Internal Architecture: Cell Quality and Interconnects
Direct Answer: The operational reliability and safety of a 20V battery pack depend not merely on plastic outer molding, but on internal cell matching tolerances (<5mV voltage delta, <2mΩ IR variance), low-impedance pure nickel interconnect busbars, and robust cell-spacing brackets that ensure mechanical shock resistance.
Low-grade aftermarket replacement packs frequently fail under sustained contractor usage because unbranded cell manufacturers utilize recycled or mixed-batch cells. When cells with uneven internal resistance (IR) are discharged in series, the weakest cell discharges faster, causing reverse polarity, overheating, and premature pack death. Premium replacement packs engineered by GeB Power undergo automated cell sorting and pairing before battery pack assembly:
- Voltage Matching Precision: Static open-circuit voltage variation across all 5 series stages is held strictly within ΔV ≤ 5mV.
- AC Internal Resistance Screening: Cell internal resistance is grouped within ΔIR ≤ 1.5mΩ at 1kHz AC frequency, ensuring uniform current distribution during high-amp cutting.
- Pure Nickel Interconnect Strips: 0.15mm to 0.20mm thick 99.6% pure nickel plates are bonded via multi-spot micro-arc laser welding, enduring over 50N of peel force and preventing vibration fractures on demolition jobsites.
- Integrated Cell Spacers: Non-conductive ABS+PC internal cradles provide an engineered 1.2mm air gap between adjacent cells, mitigating thermal stacking and facilitating bidirectional convective cooling.
3. Intelligent BMS Protection Circuits & Fault Handling
Direct Answer: Modern 20V tool batteries incorporate active printed circuit boards (PCBs) that monitor per-cell voltages, discharge current thresholds, and cell core temperatures via dual NTC thermistors, disconnecting the power output within 15 milliseconds upon detecting short circuits or overheating.
Learn more about contact communication protocols in our detailed technical review on power tool battery interfaces and contacts. A standard safety matrix includes:
| Protective Parameter | BMS Trigger Threshold | Response Time & Circuit Action |
|---|---|---|
| Overcharge Protection | 4.25V ± 0.025V per cell stage | 100ms shutoff; cuts charging loop immediately |
| Over-Discharge Cutoff | 2.75V ± 0.05V per cell stage | 50ms disconnect; prevents copper dissolution in electrolyte |
| Over-Current Discharge | 60A – 75A surge peak | 15ms power cut; resets automatically upon trigger release |
| Thermal Over-Temperature | Discharge cutoff @ 68°C / Charge cutoff @ 48°C | Immediate latch; resumes once cooled below 55°C |
| Short Circuit Protection | External low resistance (<0.05Ω) | < 500μs microsecond solid-state MOSFET isolation |
4. B2B Buyer Checklist: Inspecting 20V Replacement Batteries
When procuring 20V replacement battery inventory for distribution channels, industrial tooling suppliers, or construction equipment fleets, evaluate candidate samples using these four validation tests before issuing production purchase orders:
- Slide-Rail Mechanical Tolerances: The battery latch should seat with a tactile click and possess lateral play of less than 0.25mm to avoid contact arcing during heavy reciprocal sawing. See our guide on what batteries are compatible with DEWALT tools for cross-platform mechanical checks.
- Charger Handshake Verification: Charge the battery across standard OEM fast chargers (e.g., 2A, 4A, and 6A dock units) to verify that communication pins correctly negotiate constant-current/constant-voltage (CC/CV) steps without throwing thermal error codes.
- Full-Depletion High-Drain Stress Test: Subject the sample pack to a continuous 25A bench discharge down to cutoff voltage, logging surface temperatures. The outer housing temperature must remain below 58°C in a 25°C ambient environment.
- Compliance Documentation: Insist on genuine UN38.3 test summaries, 1.2m drop test verification, CE-EMC/LVD certificates, and SDS documentation matching the exact manufacturer address and pack model number.
Frequently Asked Questions (FAQ)
Can a 20V MAX battery be used on 18V tools?
Yes, but compatibility depends on the brand’s mechanical slide rail and terminal arrangement. For example, DEWALT 20V MAX slide batteries cannot be inserted directly into older post-style 18V NiCd tools without an official 18V-to-20V adapter, but within the modern lithium slide families, 18V nominal and 20V MAX refer to the exact same cell voltage potential.
Does a higher Ah rating damage a 20V cordless tool?
No. Amp-hours (Ah) measure fuel tank capacity, not electrical voltage pressure. A tool draws only the electrical current (amperage) demanded by its motor and working workload. Using a 5.0Ah or 6.0Ah pack instead of a 2.0Ah pack increases runtime and reduces cell internal strain, extending battery service life.
How many charge cycles should a commercial 20V pack deliver?
A quality 20V pack constructed with Grade-A 18650 or 21700 lithium cells provides between 500 and 800 full depth-of-discharge cycles before retaining 70% to 80% of its initial nominal capacity, provided it is not charged in freezing temperatures or stored in hot vehicles.
