Power Tool Battery Capacity Explained: How Ah Affects Runtime
Direct Answer: Power tool battery capacity explained: Learn how Amp-hours (Ah) and Watt-hours (Wh) impact tool runtime, pack weight, power output, and battery lifecycle.
Battery capacity is one of the first numbers buyers check when comparing cordless power tool batteries. The Ah rating tells you how much charge a battery pack can store and deliver over time. A higher Ah rating usually means longer runtime, but only when the voltage platform, tool load, battery design, and compatibility conditions are comparable. Ah matters, but it does not work alone.

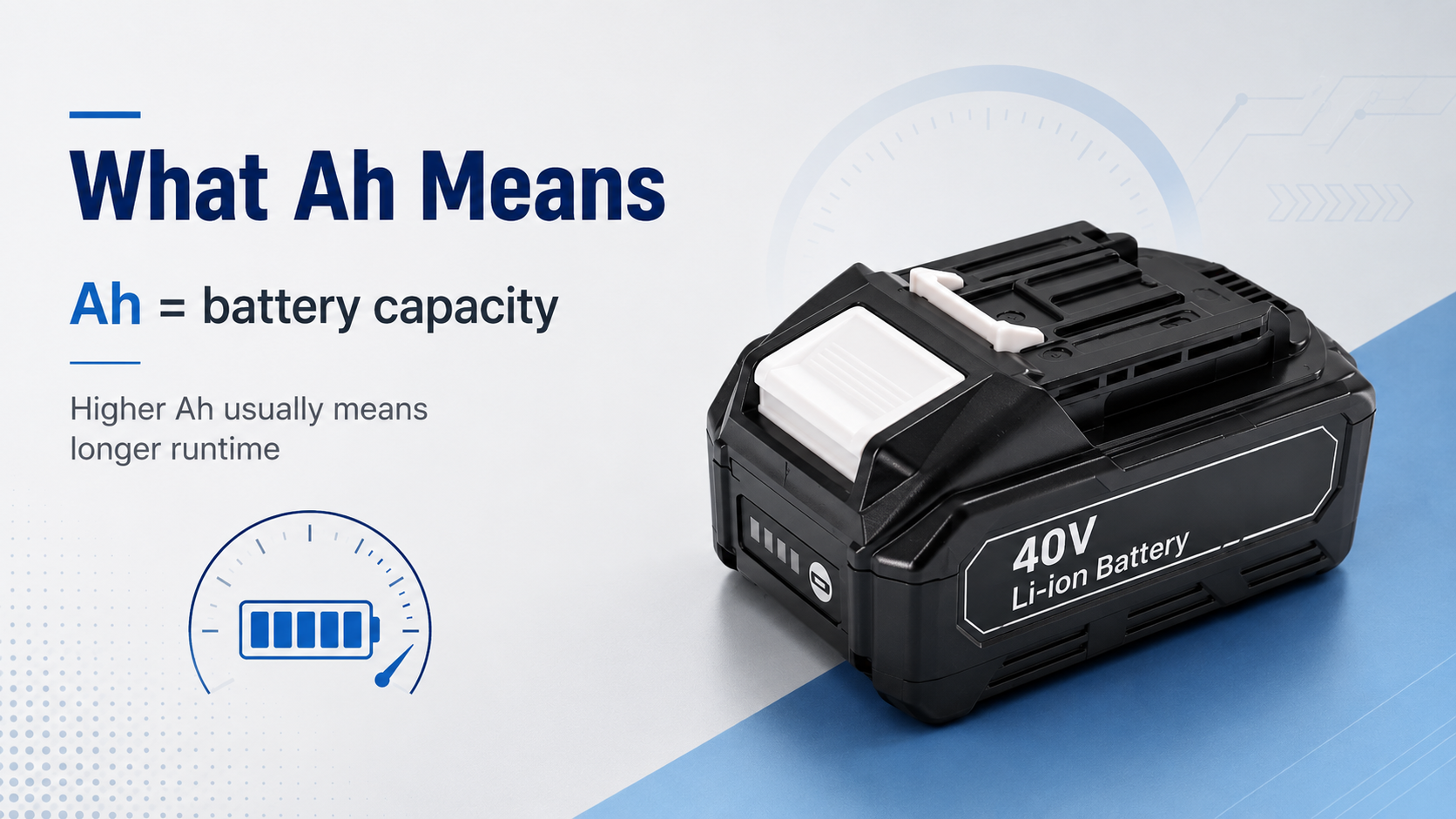

What Does Ah Mean on a Power Tool Battery?
Ah stands for amp-hour. In battery specifications, amp-hours measure capacity: how much electrical charge a battery can deliver over time under defined conditions.
A simple way to understand Ah is to think of it as the size of the battery’s fuel tank. A larger fuel tank can support longer driving distance. A higher Ah battery can usually support longer tool runtime before it needs to be recharged.
For example, a 5.0Ah battery can theoretically deliver:
| Battery capacity | Current draw | Theoretical runtime |
|---|---|---|
| 5.0Ah | 1A | 5 hours |
| 5.0Ah | 5A | 1 hour |
| 5.0Ah | 10A | 30 minutes |
This is only a simple capacity example. Cordless power tools do not draw a fixed current all the time. A drill may draw little current when spinning freely, then draw much more when drilling into hardwood or concrete.
Ah mainly tells you about runtime potential. It does not directly tell you the tool’s voltage, torque, motor power, charger compatibility, or mechanical fit.
That distinction is important when selecting a replacement power tool battery.

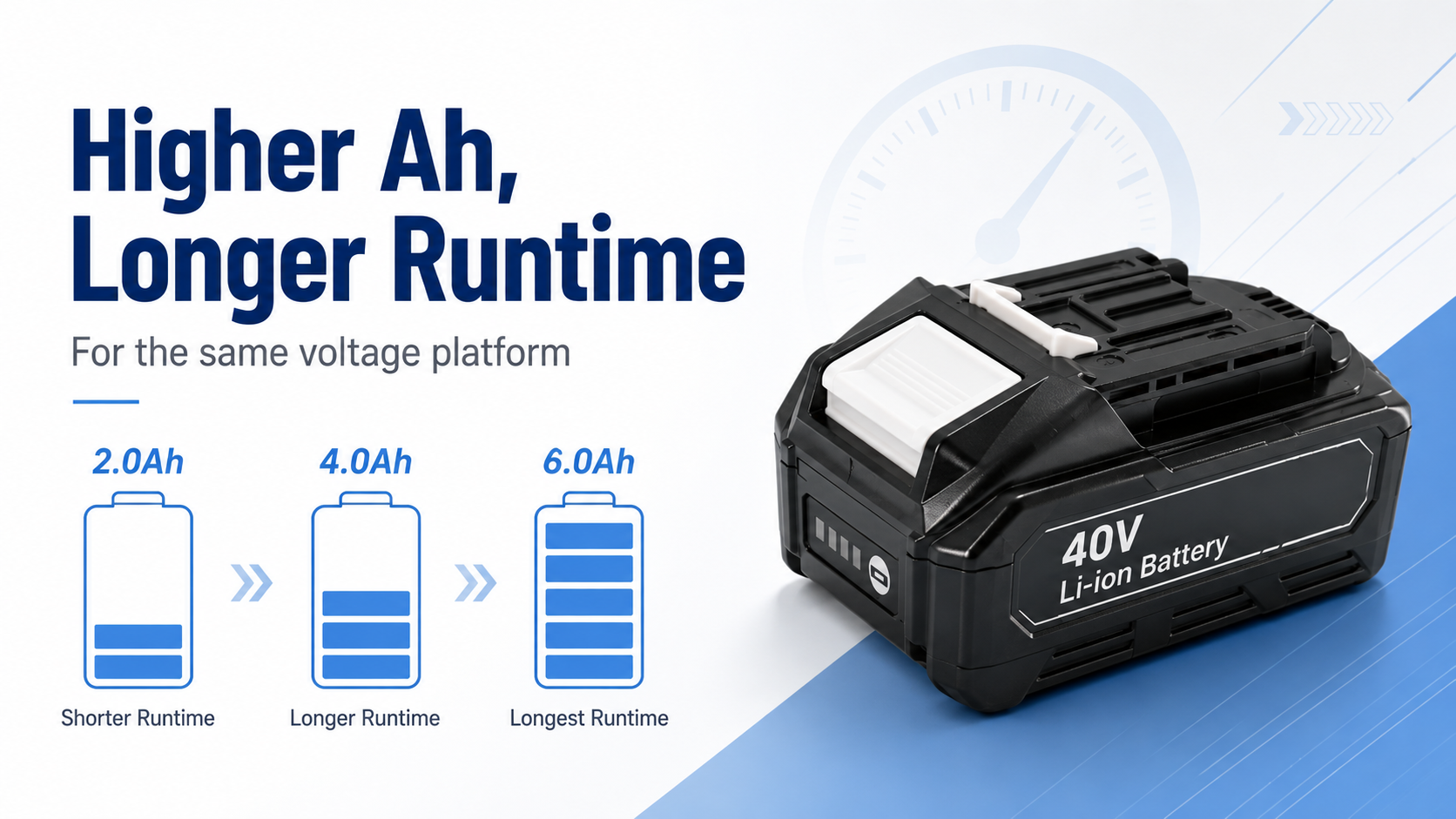

How Ah Affects Runtime
For the same power tool platform, a higher Ah battery usually gives longer runtime. A 5.0Ah battery will normally run longer than a 2.0Ah battery on the same tool, using the same voltage platform, under similar working conditions.
The basic runtime estimate is:
Runtime ≈ Battery Capacity (Ah) ÷ Tool Current Draw (A)
If a cordless tool draws an average of 5 amps, a 5.0Ah battery may theoretically run for about one hour. If the same tool draws 10 amps under heavier load, theoretical runtime drops to about 30 minutes.
This explains why Ah is useful. It gives buyers a quick way to compare battery capacity.
But the actual number on the jobsite is rarely that clean.
A power tool’s current draw changes constantly. Driving small screws, drilling steel, cutting thick lumber, grinding metal, or running a blower at full speed all create different load profiles. A high-capacity battery may last much longer in a light-duty drill than in a circular saw or angle grinder.
The better rule is simple:
Higher Ah increases available capacity, but load determines how fast that capacity is used.
That is why two users can report very different runtime from the same 5.0Ah power tool battery.
Ah vs Wh: Why Voltage Still Matters
Ah should not be read without voltage.
Watt-hours, or Wh, measure total energy. In battery specifications, Wh is calculated by multiplying voltage by capacity:
Wh = Voltage × Ah
This matters because two batteries with the same Ah rating can store different amounts of energy if they use different voltage platforms.
| Battery platform | Capacity | Approximate energy |
|---|---|---|
| 12V | 5.0Ah | 60Wh |
| 18V | 5.0Ah | 90Wh |
| 40V | 5.0Ah | 200Wh |
A 12V 5.0Ah battery and an 18V 5.0Ah battery do not provide the same energy. The Ah number is the same, but the voltage platform changes the total Wh.
This is also why 18V and 20V Max batteries can confuse buyers. Many 20V Max tool platforms use maximum fully charged voltage in marketing, while the nominal voltage is often closer to 18V. A common lithium-ion battery cell is about 3.6V nominal and about 4.0V fully charged. Five cells in series are about 18V nominal or 20V max.
So, when comparing battery capacity and runtime, check whether the voltage shown is nominal voltage or maximum voltage. For a deeper explanation of platform voltage, see How to Match Battery Voltage With Your Power Tool Platform.
Ah helps compare capacity within the same platform. Wh gives a better comparison across different platforms.
Why Real Runtime Changes in Actual Tool Use
A power tool battery runtime estimate is only a starting point. Real runtime depends on the tool, the load, the battery pack design, and the working environment.
The first factor is tool load. Light fastening work uses much less energy than cutting, grinding, or drilling into masonry. A 5.0Ah battery may feel very strong on a drill/driver but drain quickly on a grinder because the grinder demands much higher current.
The second factor is discharge current. High-load cordless tools need the battery to deliver current steadily without excessive voltage drop. Battery discharge capability is often discussed using C-rate. If the cells, internal connections, protection circuit, terminals, or heat path are not designed for that load, the battery may heat up, lose voltage, or trigger protection earlier than expected.
This is where true power tool battery performance differs from a printed Ah label.
Temperature also changes usable capacity. Lithium-ion batteries perform best in moderate conditions. Cold environments reduce chemical activity inside the cells, so the battery may deliver less usable capacity and lower power output. Outdoor winter work can make a good battery feel weaker than it does at room temperature.
Battery age matters too. As lithium-ion batteries go through charge and discharge cycles, capacity gradually drops and internal resistance rises. An older 5.0Ah battery may no longer behave like a new 5.0Ah battery. Runtime becomes shorter, and voltage may sag faster under load.
Common reasons a high Ah power tool battery drains faster than expected include:
- Heavy cutting, grinding, or drilling load
- Continuous high-current operation
- Low working temperature
- Aged cells or increased internal resistance
- Poor cell quality or overstated capacity
- Protection system limits
- Charger or platform mismatch
- Tool motor inefficiency or worn components
For battery buyers, this means Ah should be reviewed together with the application. A replacement battery for light drilling and a battery for high-load cutting may require different engineering checks, even if both are rated 5.0Ah.
Does Higher Ah Mean More Power?
Higher Ah does not automatically mean more power.
Ah mainly describes capacity. Power delivery depends on voltage, cell discharge capability, pack configuration, protection design, terminal layout, heat management, and the tool’s motor demand.
A higher Ah battery may perform better under load in some designs. This often happens when the pack uses more parallel cells, suitable high-drain cells, and a protection system designed to support higher current. The tool may maintain speed better and experience less voltage drop.
But Ah alone cannot promise that.
A high Ah battery made with weak cells, poor internal connections, or an unsuitable protection circuit may not handle demanding tools well. It may show a large capacity number but still fail to support heavy current reliably.
This is why professional battery selection should separate two questions:
| Question | What it means |
|---|---|
| How long can the battery run? | Capacity, Ah, Wh, usable energy |
| Can the battery support the load? | Cell discharge rate, BMS/protection, current path, thermal design |
For cordless power tool batteries, runtime and power delivery are connected, but they are not the same specification.
A good replacement power tool battery should have both the right capacity and the right electrical design for the tool platform.
Common Power Tool Battery Capacity Options
Power tool battery capacity is usually selected based on task duration, tool load, handling comfort, and cost. The highest Ah rating is not always the best choice.
| Battery capacity | Best use | Main advantage | Trade-off |
|---|---|---|---|
| 1.5Ah–2.0Ah | Light fastening, small drills, overhead work, short jobs | Lightweight and compact | Shorter runtime |
| 3.0Ah–4.0Ah | General drilling, fastening, repair work, regular jobsite use | Balanced runtime and weight | Not ideal for long high-load operation |
| 5.0Ah–6.0Ah | Cutting, grinding, longer sessions, heavier-duty cordless tools | Longer runtime and fewer battery swaps | Heavier, larger, longer charging time |
| 8.0Ah and above | High-load continuous work and extended runtime applications | Maximum capacity for demanding use | Higher cost, more weight, possible handling issues |
Small batteries are useful when tool balance matters. For overhead work, assembly, installation, or repeated repositioning, a compact 2.0Ah battery may feel better than a heavy 6.0Ah pack.
Mid-range batteries are often the most practical option. An 18V 3.0Ah, 4.0Ah, 5.0Ah, or 6.0Ah power tool battery can illustrate how multiple capacity options may be offered within the same voltage class to serve different runtime needs.
For high-load tools, larger capacity becomes more valuable. A 5.0Ah or 6.0Ah battery can reduce downtime, especially where users cannot stop frequently to recharge or swap packs. A 20V 3Ah–6Ah true-capacity replacement battery is another example of a capacity range intended to cover different usage levels within one platform.
Very high Ah batteries should be selected with more care. They may improve runtime, but they can also change tool balance, increase fatigue, require more charging time, and affect fit in tight spaces.
Battery capacity should match how the tool is actually used, not just the largest number available on the label.
Is a Higher Ah Battery Always Better?
A higher Ah power tool battery has clear advantages. It stores more capacity, usually extends runtime, and reduces battery changes during longer work sessions.
But it also adds trade-offs.
A larger capacity pack usually needs more cells, higher-capacity cells, or a different internal layout. That often means more weight and a larger housing. The tool may feel rear-heavy. For long overhead use, the extra runtime may not justify the added fatigue.
Charging time is another factor. With the same charger, a higher Ah battery usually takes longer to charge. Actual charging time depends on charger output, cell configuration, pack temperature, state of charge, and protection strategy.
Cost also increases. For distributors and brand customers, this affects product positioning. A 6.0Ah battery may be attractive for professional users, while a 2.0Ah or 4.0Ah option may be better for price-sensitive channels or lighter tool categories.
Higher Ah is better when runtime is the main problem.
It is not better when weight, size, cost, charging time, or compatibility becomes the bigger issue.
Can You Use a Higher Ah Replacement Battery in the Same Tool?
In many cases, a higher Ah replacement battery can be used in the same power tool platform if the system is properly matched. The voltage must be correct. The interface must fit. The terminals must align. The charger must support the battery. The pack must also handle the expected load.
Do not select a replacement battery based only on brand name and Ah rating.
A 5.0Ah replacement battery may look like a simple upgrade from 2.0Ah, but the pack still needs to match the original battery model, tool platform, charger, housing structure, and electrical requirements.
Before upgrading capacity, check these points:
- Original battery model
- Power tool model
- Charger model
- Nominal voltage platform
- Required capacity
- Interface geometry
- Terminal layout
- Locking structure and housing fit
- Expected load and application
- Working environment
If the original battery reference is unclear, How to Identify Your Original Power Tool Battery Model Number explains where to find the model information before comparing replacement options.
Voltage alone is not enough. Ah alone is not enough.
A compatible power tool battery must match both electrical and mechanical requirements. This includes the contact position, pack shape, tool rail or slide structure, locking mechanism, and charging conditions.
For B2B replacement battery supply, these checks should happen before quotation, sampling, and production planning. Capacity upgrade is not only a sales option. It is an engineering decision. Buyers comparing replacement options can also use How to Choose the Right Replacement Power Tool Battery: A Buyer’s Guide as a broader selection reference.
How B2B Buyers Should Specify Battery Capacity in an RFQ
A clear RFQ should not only say “need 5.0Ah battery.” That is not enough for reliable product selection.
For a standard replacement power tool battery inquiry, provide the original battery reference, tool model, charger model, voltage, required capacity, order quantity, and destination market. These details help confirm the product path and avoid compatibility mistakes.
For OEM or ODM power tool battery projects, capacity affects more than runtime. It can change cell configuration, protection requirements, housing size, heat path, label space, packaging, test requirements, and production handoff. GeB Power’s power tool battery solutions cover compatibility review, OEM/ODM development, sample validation, and related project support.
Useful RFQ information includes:
| RFQ item | Why it matters |
|---|---|
| Original battery model | Confirms reference platform |
| Tool model | Checks application and mechanical fit |
| Charger model | Verifies charging compatibility |
| Voltage platform | Prevents wrong system selection |
| Required capacity | Defines runtime target |
| Application and load | Helps review discharge current needs |
| Quantity and destination | Supports production and document planning |
| Label and packaging needs | Affects private-label or channel requirements |
| Certificate or shipping document needs | Depends on model, configuration, and market |
Capacity is only one part of the battery specification. The more clearly the application is defined, the more accurately the battery pack can be selected, sampled, tested, and produced.
FAQ: Power Tool Battery Ah and Runtime
Does a higher Ah battery last longer?
Usually, yes. On the same voltage platform, with the same tool and similar load, a higher Ah battery normally provides longer runtime. The actual difference depends on tool current draw, working load, battery design, temperature, and battery age.
Can I use a 5.0Ah battery instead of a 2.0Ah battery?
Often yes, if the voltage platform, interface, terminal layout, housing fit, tool model, and charger are compatible. The 5.0Ah battery will usually run longer, but it will also be heavier and may take longer to charge.
Does higher Ah mean more power?
No. Ah mainly means capacity. Power output depends on voltage, cell discharge capability, protection design, internal connections, terminals, thermal control, and the tool’s motor demand. A higher Ah pack may support load better in some designs, but Ah alone does not define power.
Why does my high Ah battery drain quickly?
The most common reason is high load. Cutting, grinding, impact work, and drilling hard material require much more current than light fastening. Cold temperature, battery aging, poor cell quality, or protection limits can also shorten runtime.
What Ah battery is best for cordless tools?
For light work, 1.5Ah to 2.0Ah is often enough. For general drilling and fastening, 3.0Ah to 4.0Ah offers a good balance. For cutting, grinding, and longer work sessions, 5.0Ah to 6.0Ah is usually more suitable. High-load continuous work may require 8.0Ah or larger packs, depending on platform support.
Choosing Capacity with Runtime and Compatibility in Mind
Power tool battery capacity is easy to compare on a label, but real performance depends on more than Ah. A higher Ah rating usually extends runtime on the same voltage platform, but actual results depend on tool load, discharge current, Wh, battery design, temperature, age, charger support, and mechanical fit.
For replacement batteries, capacity selection should start with the original battery model, tool model, charger model, voltage platform, interface, and expected application.
GeB Power supplies compatible replacement power tool batteries and supports OEM/ODM battery pack projects with product selection, compatibility review, sample validation, and production handoff. Contact our team to review your target battery capacity, tool platform, and project requirements before moving to bulk supply.
