Power Tool Battery Interfaces and Contacts: Compatibility Explained
Direct Answer: Understand power tool battery interfaces, terminal pinouts, and communication protocols. Learn how mechanical keyed slots and BMS sensors ensure safe fitment.
Power tool battery compatibility is not confirmed by voltage, brand name, or appearance alone. A replacement battery must fit the tool mechanically, align with the correct contacts, match the voltage platform, communicate properly with the tool or charger, and support the required load. This guide explains how battery interfaces and contacts affect compatibility, and what buyers should check before selecting a replacement power tool battery.

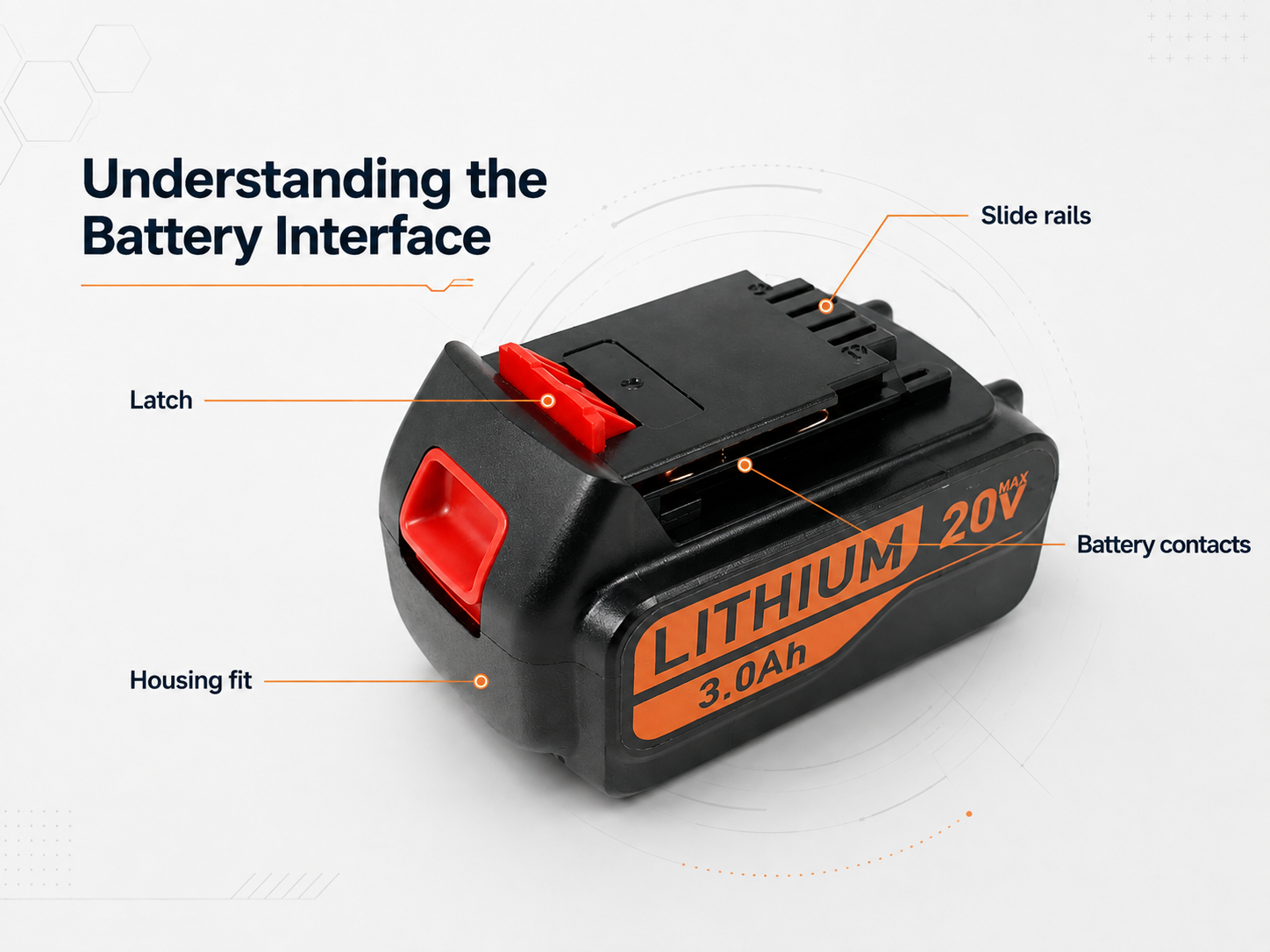

What Is a Power Tool Battery Interface?
A power tool battery interface is the mechanical and electrical connection between a cordless tool and its battery pack. It includes the plastic housing shape, slide rails, latch, locking structure, insertion direction, terminal position, and the electrical path that allows current to flow from the battery to the tool.
This interface does more than hold the battery in place. It controls whether the battery can be installed correctly, whether it locks under vibration, and whether the battery contacts align with the tool terminals. If the interface is slightly wrong, the battery may feel loose, fail to seat fully, lose power under load, or fail to release smoothly.
A proper replacement battery must match the original platform in two ways: mechanical compatibility and electrical compatibility. Mechanical compatibility means the battery fits, locks, and aligns. Electrical compatibility means the voltage, current path, contact function, protection logic, and charger requirements are suitable for the target tool platform.
For this reason, a battery interface should never be treated as a simple plastic shape. It is part of the power and safety system.
Common Types of Power Tool Battery Interfaces
Most cordless power tool batteries use one of several interface styles. The design varies by brand, voltage platform, tool generation, and battery pack structure.
Slide-On Battery Interfaces
A slide-on battery interface uses guide rails or a dovetail-style structure. The battery slides into the tool base, and the electrical contacts connect as the pack reaches its locked position.
This style is common in many modern cordless tool platforms, including 18V and 20V Max tool families. It is popular because it allows quick battery changes and offers good support for larger battery packs. The rail structure also helps control the direction of insertion and keeps the contacts aligned.
The key point is that slide-on does not mean universal. Different brands may all use a sliding battery pack, but the rail width, latch position, terminal layout, insertion depth, and housing profile can be completely different.
Clip-In or Latch-Type Interfaces
A clip-in battery interface, also called a latch-type interface, uses a locking clip or release button to secure the battery. Some packs slide first and then click into place. Others press directly into a tool handle or socket.
This structure is useful where the tool sees vibration, impact, or frequent movement. The latch must hold the pack firmly enough to prevent accidental detachment, but it must also release cleanly without damaging the tool housing.
A weak latch or inaccurate housing can create a battery that “fits” but does not stay stable. Under real load, that small movement can affect contact pressure.
Screw-On and Specialized Interfaces
Screw-on battery interfaces are less common today and are more likely to appear on older or specialized tools. In these designs, the battery is fastened by a threaded or screw-lock structure.
Specialized or proprietary interfaces are also common. Some compact tool platforms use smaller battery footprints. Some high-performance platforms include extra contacts for communication, battery identification, or charging control. Others use dedicated shapes to prevent wrong-platform insertion.
Interface style is only a starting point. Real compatibility depends on the exact platform design.
Mechanical Compatibility: Rails, Latches, Housing, and Contact Alignment
Mechanical compatibility means the replacement battery physically matches the tool platform. It must install, lock, align, and release in the same way the tool expects.
The main mechanical points include:
| Mechanical Area | What to Check | Why It Matters |
|---|---|---|
| Rail geometry | Rail width, angle, slide path, insertion direction | Controls whether the pack seats correctly |
| Latch position | Locking point, release button, spring force | Prevents looseness or accidental detachment |
| Housing size | Pack height, width, base shape, tool clearance | Avoids interference with the tool body |
| Insertion depth | How far the battery travels before locking | Affects terminal engagement |
| Contact alignment | Battery contacts vs tool terminals | Prevents poor connection and arcing |
| Anti-misinsert design | Keyways, slots, asymmetric shapes | Reduces wrong-platform installation |
Some battery platforms control rail angle, contact depth, terminal thickness, and latch geometry within tight tolerances. Small changes can affect how deeply the contacts engage. A contact that is only slightly misaligned may still touch at no load, but fail under vibration or high current.
This is where many low-quality replacement batteries fail. They copy the visible shape but do not maintain the correct fit. A loose rail, shallow insertion depth, or weak latch can cause intermittent shutdown, higher contact resistance, heat buildup, or visible arcing at the terminals.
Mechanical fit is not proven by pushing the battery into the tool once. It needs to remain stable during real use.
What Do Power Tool Battery Contacts Do?
Power tool battery contacts are the metal terminals that connect the battery pack to the tool or charger. Some contacts carry power. Others support temperature sensing, battery identification, communication, or charging control.
Modern battery contacts are not all the same.
Power Contacts: B+ and B−
The main positive and negative terminals are often referred to as B+ and B−. These contacts carry the discharge current from the battery pack to the tool motor and control electronics.
For drills, lights, and low-load tools, the current may be moderate. For circular saws, grinders, impact wrenches, reciprocating saws, and outdoor power equipment, the current can be much higher. In those cases, contact area, contact pressure, metal thickness, and low resistance become more important.
Poor power contact can cause:
- voltage drop under load;
- tool shutdown;
- terminal heating;
- burn marks;
- arcing;
- reduced battery and tool life.
A battery can have the right voltage and still perform poorly if the power contacts are not stable.
Temperature Contacts or Thermistor Signals
Many lithium-ion power tool batteries include a temperature contact, often linked to a thermistor inside the battery pack. This signal helps the tool or charger monitor pack temperature.
Temperature sensing may be used to stop charging when the pack is too hot or too cold. It may also help prevent discharge when the battery is overheating. If the temperature signal is missing, miswired, or not recognized, the charger may reject the battery or stop charging early.
This is one reason charger compatibility must be checked separately from tool fit.
ID, Signal, or Communication Contacts
Some platforms include an ID contact, signal pin, or communication contact. These contacts may support battery identification, capacity recognition, state information, smart tool features, or communication between the battery, tool, and charger.
The exact function depends on the platform. Some systems are simple. Others use more advanced battery management and tool control logic.
This matters because two batteries may have similar power terminals but different signal contact definitions. A missing or incorrect signal may cause the tool not to start, the charger not to recognize the pack, or smart functions to stop working.
Charger-Related Contacts
A battery interface may work differently in a tool and in a charger. The tool mainly draws discharge current. The charger needs to identify the pack, read temperature information, manage charge current, and stop charging safely.
A replacement battery that powers a tool is not automatically charger-compatible. The charger model should be confirmed before quotation, sampling, or production.
The visible terminal layout is only part of the story. Each contact must be in the correct position and serve the correct function.
Why Same Voltage Does Not Mean Same Compatibility
Voltage is only the first filter.
Many lithium-ion power tool systems are built around 18V nominal or 20V Max labels. In common industry usage, 20V Max often refers to the maximum voltage of a fully charged 5-cell lithium-ion pack, while 18V refers to its nominal operating voltage. That does not make every 18V or 20V Max battery interchangeable.
The platform still matters.
A same-voltage battery can differ in:
| Compatibility Factor | Why It Can Block Compatibility |
|---|---|
| Interface geometry | Battery cannot fit or lock correctly |
| Terminal layout | Contacts do not align or serve different functions |
| Polarity and power path | Incorrect connection can damage equipment |
| Temperature signal | Charger or tool may reject the battery |
| Communication logic | Battery may not be recognized |
| BMS protection | Protection thresholds may not match the application |
| Discharge capability | Pack may sag, overheat, or shut down under load |
| Charger requirements | Battery may not charge safely or at all |
Capacity is also not enough. An 8.0Ah battery and another 8.0Ah battery may behave differently if they use different cells, different pack configurations, or different discharge ratings. High-demand tools need a pack that can deliver current without excessive voltage sag or overheating.
For replacement battery selection, the correct question is not “Is the voltage the same?” The better check is whether the battery model, tool model, charger model, interface, contact layout, load requirement, and protection logic match the intended use. For a deeper explanation of voltage labels and platform matching, read How to Match Battery Voltage With Your Power Tool Platform.
Cross-Brand Compatibility and Battery Adapters: What They Can and Cannot Solve
Cross-brand battery compatibility is possible only when it is engineered for a specific platform. It should not be assumed from voltage, appearance, or a simple adapter listing.
Some universal battery systems use a single battery pack with brand-specific adapter mounts or interface plates. The adapter reproduces the mechanical footprint of a target platform and routes the power contacts to the correct tool-side positions. In a basic design, it may route B+, B−, and a temperature signal through conductive paths.
This shows why cross-brand compatibility is difficult. The adapter must match the rail geometry, latch mechanism, terminal layout, contact pressure, and insertion depth. If the contact gap is too large, the tool may run poorly under load. If the latch is weak, the battery may move during use. If the temperature or signal contact is wrong, the tool or charger may reject the pack.
What Adapters Can Help With
A well-designed adapter can help with mechanical conversion between platforms. It can provide:
- a matching slide rail or mounting footprint;
- a latch shape that fits the target tool;
- contact positions that align with the tool terminals;
- a conductive path for the main power terminals;
- in some cases, a path for temperature sensing.
This can be useful in controlled applications where the adapter, battery, and tool have been tested together.
What Adapters Cannot Automatically Solve
A battery adapter does not automatically solve the deeper compatibility issues.
It cannot turn a wrong-voltage battery into the right-voltage platform. It cannot increase the battery’s discharge capability. It cannot guarantee that the charger will recognize the pack. It cannot always translate communication protocols or smart battery signals. It also adds another mechanical and electrical interface that must be reviewed for heat, voltage drop, wear, and contact reliability.
For B2B supply and engineering projects, adapters should be treated as parts that require validation, not as shortcuts around compatibility review.
Compatibility Checklist Before Choosing a Replacement Battery
A replacement battery should be selected from confirmed information, not from photos or voltage labels alone. The following checklist helps reduce mistakes before quotation, sampling, or volume orders.
Basic Checklist for Catalog Replacement Batteries
| Information to Confirm | Why It Matters |
|---|---|
| Original battery model number | Identifies the intended replacement path |
| Power tool brand and model | Confirms the platform and mechanical interface |
| Charger model | Confirms charging compatibility and recognition |
| Voltage platform | Prevents wrong-voltage selection |
| Required capacity | Matches expected runtime and pack size |
| Interface photos | Helps review rails, latch, housing, and insertion direction |
| Contact layout photos | Helps confirm terminal count, position, and contact type |
| Application workload | Indicates current demand and protection needs |
| Order quantity | Affects supply path, packaging, and production planning |
| Destination market | Affects labeling, logistics, and document requirements |
Photos should include the original battery label, bottom interface, side rails, latch area, and terminal area. Tool and charger labels are also useful. A brand name alone is not enough. For more detail on reading battery labels and references, see How to Identify Your Original Power Tool Battery Model Number.
Additional Checklist for OEM/ODM Battery Pack Projects
For custom power tool battery pack development, the review should go deeper. In addition to the original model, tool, charger, voltage, and capacity, the project should define:
- target discharge current or tool workload;
- cell configuration and pack size limits;
- BMS and protection requirements;
- interface, contact, and connector requirements;
- enclosure material and mechanical structure;
- thermal path and heat management;
- label, packaging, and identification requirements;
- sample validation criteria;
- certificates, test reports, and shipping document needs;
- destination market and transport method.
This is where battery pack engineering becomes important. A custom pack is not only a collection of cells in a plastic case. It is an electrical, mechanical, thermal, and production-controlled product.
Good compatibility review starts before the sample is built.
How to Validate Battery Interface and Contact Compatibility
Final compatibility should be proven with the intended tool and charger. Drawings, photos, and model numbers reduce risk, but they do not replace sample validation.
A practical validation process should include mechanical checks, electrical checks, charger checks, and application checks.
| Validation Area | What to Test |
|---|---|
| Installation | Battery slides or clips in smoothly without forcing |
| Locking | Latch engages fully and holds under movement |
| Release | Battery can be removed without sticking or damaging the tool |
| Contact alignment | Terminals engage fully and evenly |
| No-load operation | Tool starts normally without warning or shutdown |
| Load operation | Tool runs under expected workload without voltage sag or cutoff |
| Heat behavior | Contacts and pack housing do not show abnormal heating |
| Charger recognition | Charger detects the battery and starts charging correctly |
| Charge completion | Charging stops normally without error |
| Post-test inspection | No burn marks, deformation, looseness, or terminal damage |
For high-current tools, a light no-load test is not enough. A battery may run a drill at low load but fail on a saw, grinder, or impact wrench. The validation should match the real application as closely as possible.
Sample validation also protects production quality. Once the battery model, interface, contact layout, packaging, label, and inspection requirements are confirmed, the project can move into production planning with fewer surprises.
Final Thoughts
Power tool battery interface and contact compatibility comes down to one practical question: can the battery fit, lock, connect, communicate, charge, and deliver current safely in the intended tool platform?
Voltage and appearance are not enough. The correct replacement battery must match the mechanical interface, terminal layout, contact function, charger requirements, protection logic, load demand, and validation results.
GeB Power supplies compatible replacement power tool batteries and supports OEM/ODM battery pack projects for global buyers. Share your original battery model, tool model, charger model, voltage, capacity, interface photos, contact layout, quantity, destination market, and document requirements to start a compatibility review.
Technical references: For deeper insight into lithium-ion cell chemistry, discharge rates, and cycle degradation standards, consult the Battery University Guide on Li-ion Lifespan and the UL Standards for Battery Safety Testing.
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the third or fourth terminal pin on power tool batteries?
The additional smaller pins connect to the internal NTC thermistor (temperature monitoring) and communication bus (data handshake between battery BMS and smart charger).
Q2: How do I clean corroded battery contact terminals?
Use a non-conductive precision contact cleaner spray and a small brass wire brush, followed by wiping dry with a microfiber cloth.
