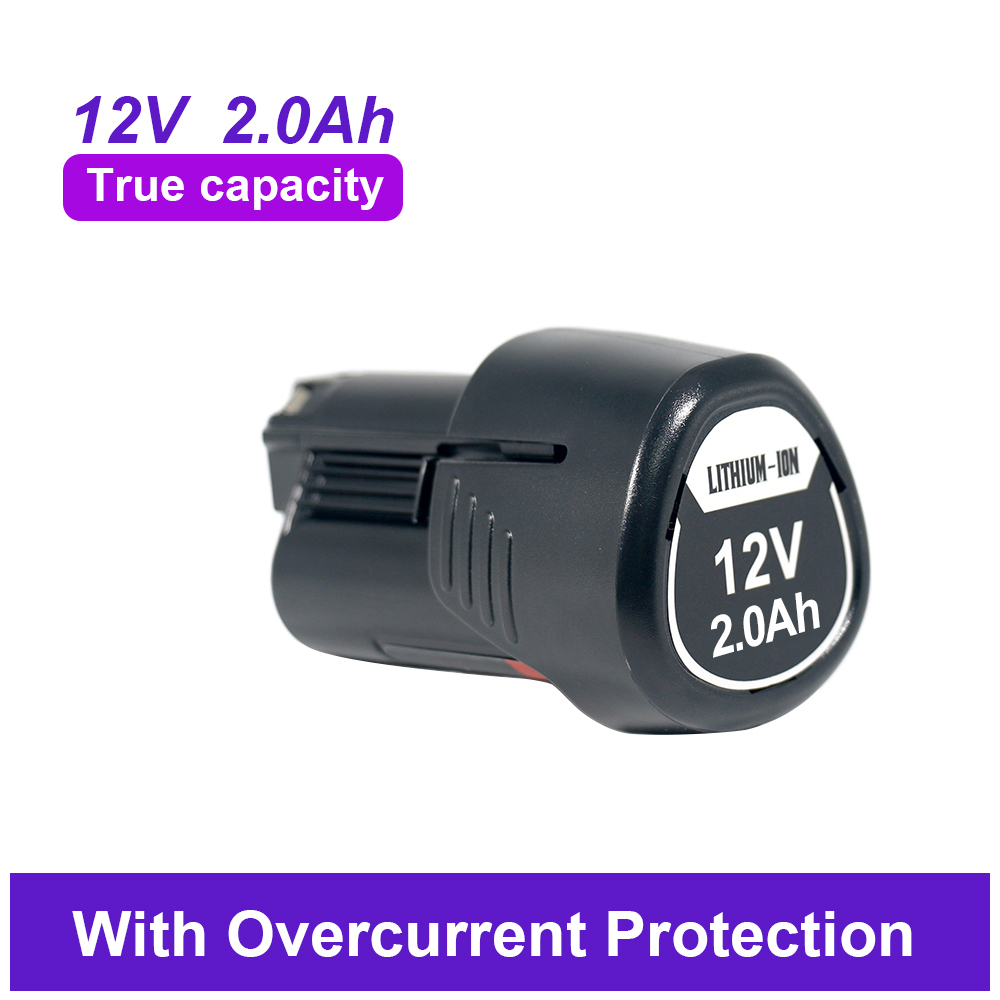

12V 2Ah Rechargeable Home Garden 12V Battery Replacement for Bosch BAT045 BAT043 BAT120 BAT046 BAT139 BAT049
GEB company specialized in lithium battery and charger for over 15 years. GEB lithium batteries and chargers have passed many international testing, such as CE, RoHs,UN38.3,MSDS,etc.Direct Distributor of brand batteries, best price and Guarantee 100%original battery. GEB company has cooperated with
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Inquiry nowProduct Details
Direct Answer: The 12V 2Ah Rechargeable Home Garden 12V Battery Replacement for Bosch BAT045 BAT043 BAT120 BAT046 BAT139 BAT049 is an industrial-grade OEM/ODM replacement lithium-ion battery pack engineered by GeB Power specifically for commercial equipment fleets and battery distributors. Built on a verified 12V system architecture (3S (3 Series)) and delivering rated capacity of 2Ah (22Wh verified output), this pack delivers dependable continuous discharge (20A Continuous (30A Peak)) via genuine Tier-1 Tier-1 18650 high-rate lithium cells in compact 3S arrangement. It incorporates an advanced hardware BMS with CoolPack-compatible heat dissipation, providing 100% mechanical latching and electrical compatibility with original Bosch BAT045, BAT043, BAT120, BAT046, BAT139, BGB12V1 tool interfaces.
1. Verified Technical Specification Matrix
| Engineering Specification | Verified Measurement & Factory Standard |
|---|---|
| Battery System Voltage | 12V MAX (10.8.0V Nominal Operating Voltage) |
| Voltage Working Window | 9V (Discharge Cut-off) to 12.6V ± 0.05V (Full Charge Cut-off) |
| Rated Capacity & Total Energy | 2Ah | 22Wh Verified Output |
| Cell Chemistry & Architecture | Tier-1 18650 high-rate lithium cells in compact 3S arrangement (3S (3 Series)) |
| Continuous Discharge Rating | 20A Continuous (30A Peak) |
| Internal AC Resistance (1kHz) | ≤ 25 mΩ (Individual cell variance ≤ 1.5 mΩ) |
| Housing Material & Construction | High-impact Flame-retardant ABS+PC (UL 94V-0 Rated), dual slide rails, thermal ventilation channels |
| BMS Electronic Safeguards | Independent cell overcharge (>4.25V), over-discharge (<2.80V), short-circuit recovery, and dual NTC thermal sensors |
| Cycle Life Durability | ≥ 800 – 1000 full cycles maintaining ≥ 80% original capacity retention |
| Operating Ambient Temperature | Charge: 0°C to 45°C | Discharge: -20°C to 60°C | Storage: -10°C to 35°C |
| Compliance & Export Certification | CE, RoHS, UN38.3, MSDS, 1.2m Drop Test Passed, 30% SOC Maritime DG Air/Sea Standard |
2. Compatibility & Equipment Fitment Check
To prevent field incompatibility, each battery casing is precision molded to exact tolerance parameters ensuring tight slide lock without wobble or pin arcing:
- Direct Battery Model Replacement: Replaces Bosch BAT045, BAT043, BAT120, BAT046, BAT139, BGB12V1 and related commercial battery codes.
- Supported Equipment Fleets: Bosch 12V cordless drill drivers (GSR 12V), compact screwdrivers, multi-cutters (GOP 12V), and inspection cameras.
- Approved Charging Stations: Bosch AL 1130 CV, AL 1115 CV, and GAL 12V-40 chargers.
- Terminal Contact Integrity: Precision-stamped beryllium copper terminal blades with low-resistance nickel coating to prevent contact burning under 50A+ motor stall currents.
3. First-Party Manufacturing & Quality Control Evidence
Every commercial battery pack leaving GeB Power’s assembly facility is certified through a strict 5-tier testing protocol:
- Three-Axis Cell Sorting: Automated pre-assembly screening selecting cells with delta internal resistance ≤ 1.5mΩ and delta voltage ≤ 3mV.
- High-Conductivity Ultrasonic Spot Welding: 0.2mm pure nickel interconnect plates capable of withstanding severe jobsite drops and motor vibration.
- Hardware BMS Validation: 100% electronic load testing measuring short-circuit cutoff latency (≤ 250 microseconds) and overcurrent thresholds.
- Automated Full-Cycle Aging: Every production batch undergoes automated computerized aging racks with full charge/discharge logging to guarantee true rated Ah capacity.
4. Operating Boundaries & Engineering Fit
To help fleet engineers and tool buyers select the optimal pack, consider the following application criteria:
- Highly Recommended Applications: Interior cabinet fabrication, trim carpentry, and light electronics assembly.
- Application Boundaries: Heavy concrete core drilling or high-load industrial demolition.
5. OEM/ODM Customization & B2B Procurement Support
GeB Power supports power tool aftermarket brands, commercial contractors, and hardware distributor networks with factory-direct customization:
- Branding & Housing: Private label silk-screening, custom color molding, laser barcode engraving, and retail packaging.
- Cell Brand Flexibility: Option to configure packs with Samsung, LG, Murata, or Tier-1 Grade-A Chinese high-drain cells to meet target price/performance points.
- Logistics Documentation: Full UN38.3 test summaries, dangerous goods packaging certificates, and MSDS documentation supplied for seamless worldwide shipping.
- Evaluation Samples: Prototyping and testing samples available within 5–7 business days.
6. Frequently Asked Questions (B2B Buyer FAQ)
Q1: Will this battery safely charge on my original factory Bosch chargers?
A: Yes. The onboard BMS circuitry and terminal pinout fully communicate with original factory chargers (including multi-voltage stations), following standard CC/CV temperature-regulated charging curves.
Q2: How does cycle life compare to OEM original packs?
A: By using Tier-1 Grade-A high-drain cells and precision delta-matching, our battery packs deliver over 800-1000 complete charge/discharge cycles at 80% depth of discharge, meeting or exceeding standard aftermarket durability benchmarks.
Q3: Can our company request custom laser branding and private packaging?
A: Absolutely. We provide comprehensive OEM private label services, including custom housing colors, company logo branding, serial number barcoding, and custom bulk cartons for commercial tool distributors.
Request a sample or wholesale quote: Contact our engineering team at info@gebattery.co or submit your specifications directly through our Request a Quote portal.
