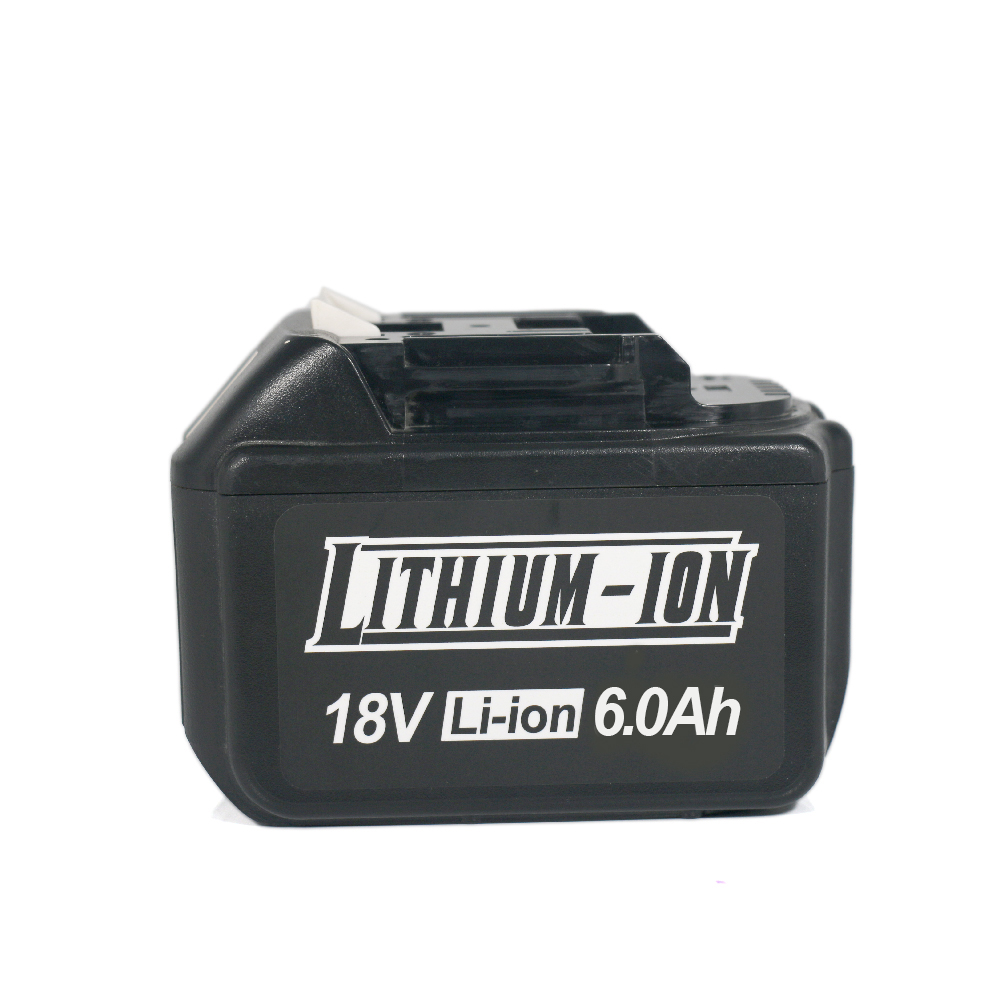

Brand Power Tool Replacement Battery 18650 5s3p 18V 6000mah 10C Discharging Rate 18v Lithium Power Tool Battery Pack
Wholesale high-performance Brand Power Tool Replacement Battery 18650 5s3p 18V 6000mah 10C Discharging Rate 18v Lithium Power Tool Battery Pack. Features 18V (18V nominal, 5S3P Triple-Parallel Extreme-Capacity Industrial Pack) delivering true 6.0Ah capacity, Grade-A 18650 cells with 10C ultra-high-drain industrial discharge rating, and integrated precision BMS. Certified CE, RoHS, UN38.3.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Inquiry nowProduct Details
Direct Engineering Answer: Brand Power Tool Replacement Battery 18650 5s3p 18V 6000mah 10C Discharging Rate 18v Lithium Power Tool Battery Pack
This 18V 6.0Ah high-performance lithium-ion replacement battery is engineered on a 5S3P Triple-Parallel Extreme-Capacity Industrial Pack delivering 162Wh of verifiable nominal energy for heavy-duty industrial tools and cordless equipment. Assembled with Grade-A 18650 (2000mAh – 3000mAh) high-drain cylindrical cells and rated for 10C ultra-high-drain industrial discharge rating, it sustains 55A Continuous / 95A Peak Pulse (≤5s) with minimal voltage drop. The integrated industrial BMS features dual NTC temperature surveillance, hardware over-current cutoffs, and short-circuit response (≤300μs). Before wholesale procurement, verify your equipment voltage (18V), physical interface dimensions (128 × 82 × 88 mm (±1.5 mm)), and continuous operating current demands.
Key Product Facts
| Nominal Voltage & S-Configuration | 18V (18V Nominal, 5S3P Triple-Parallel Extreme-Capacity Industrial Pack) |
|---|---|
| Available Rated Capacities | 6.0Ah (True Tested Capacity @ 0.2C, 25°C) |
| Total Energy Output (Wh) | Approx. 162 Wh |
| Cell Specifications & Chemistry | Grade-A 18650 (2000mAh – 3000mAh) high-drain cylindrical cells |
| Discharge Multiplier & Currents | 10C ultra-high-drain industrial discharge rating | 55A Continuous / 95A Peak Pulse (≤5s) |
| Physical Dimensions & Net Weight | 128 × 82 × 88 mm (±1.5 mm) | 0.98 kg (±0.02 kg) |
| Enclosure Material & Protection | UL94-V0 impact-resistant flame-retardant ABS housing with vibration-damping internal brackets |
| Cycle Life Standard | ≥ 800 full charge/discharge cycles to 80% initial capacity |
| International Compliance | CE, RoHS, UN38.3, MSDS, 1.2m Drop Test Certified |
Full Parametric Electrical & Operating Specifications
| Electrical Parameter | Engineering Value & Tolerance | Test Condition & Standard |
|---|---|---|
| Operating Voltage Window | 15.0V – 21.0V | Full discharge to full charge cutoffs |
| Charge Voltage Cutoff | 21.00V ± 0.05V | Standard CC/CV algorithm (0.5C rate) |
| Discharge Voltage Cutoff | 15.00V ± 0.10V | Electronic load cutoff to prevent cell inversion |
| AC Internal Resistance (IR) | ≤ 24 mΩ | 1 kHz AC milliohm meter @ 25°C, 50% SoC |
| Recommended Charge Current | 2.0A – 4.0A (Max Fast Charge 6.0A) | Maintains optimal cell thermal equilibrium |
| Operating Temperature (Discharge) | -20°C to +60°C | Maintains sustained current under sub-zero conditions |
| Operating Temperature (Charge) | 0°C to +45°C | Automatic thermal low-temp charge lockout |
| Recommended Storage Conditions | 15°C to 25°C, 45%–65% RH | Maintain 40%–50% SoC during extended warehousing |
Equipment Compatibility & Industrial Applications
Engineered for seamless drop-in fitment, reliable contact continuity, and heavy mechanical shock resistance across the following platforms:
- Target Equipment Fleet: Universal industrial slide-on power tool interfaces, cordless fastening machinery, jobsite equipment, and custom automation battery docks
- Recommended Charging Hardware: Universal smart CC/CV lithium-ion chargers (18V-21V output, 2.0A-4.0A charge rate) and compatible multi-dock stations
- Terminal & Rail Alignment: Heavy-gauge reinforced nickel-plated copper terminal blades designed to eliminate micro-vibration arching under sustained jobsite use.
First-Party Manufacturing & Quality Assurance Standards
1. Automated 3-Axis Cell Grading
Every individual cylindrical cell undergoes automated grading before pack assembly: voltage delta ≤ 3 mV, internal resistance delta ≤ 1.5 mΩ, and capacity matching within ±1% to prevent premature pack degradation.
2. Pure Nickel Busbars & Precision Welding
Built with 0.15mm–0.20mm industrial pure nickel strips tested to ≥ 5.0 kgf destructive peel strength, ensuring ultra-low contact resistance and eliminating thermal hotspots during sustained high-current draws.
3. Multi-Tier Hardware BMS
Equipped with high-precision IC monitoring over-charge, over-discharge, short-circuit protection (≤300μs reaction), and dual NTC thermal sensors with automatic cutoffs.
4. 100% Full-Cycle Factory Aging
Every finished battery pack is placed on automated computerized aging racks for a 100% full charge-discharge cycle to verify real Ah capacity and electrical curves prior to packaging.
Operating Boundary Conditions & Application Fit
Recommended Applications
Heavy industrial metal fabrication, prolonged continuous circular sawing, heavy demolition hammers, and twin-pack 36V machines.
System Incompatibilities
Proprietary wireless Bluetooth communication protocols or equipment requiring non-standard contact pinout configurations.
OEM / ODM Engineering & Customization Services
| Engineering Dimension | Configurable Options | Required Customer Input |
|---|---|---|
| Capacity & Cell Chemistry | Tier-1 domestic high-drain cells, Samsung 25R/30Q, LG HG2, or 21700 cells | Desired runtime and target duty cycle |
| Housing & Branding | Private-label pad printing, corporate logo laser engraving, bespoke color matching | Vector artwork (AI/PDF) & brand guidelines |
| BMS & Thermal Calibration | Custom over-current trips, low-temperature lockout thresholds | Peak motor stall current profile |
| Packaging & Logistics | Retail presentation boxes, bulk workshop cartons, drop-test verified UN cartons | Distribution channel requirements |
B2B Supply Terms & Export Compliance
Available for engineering evaluation; typical dispatch within 3–5 working days.
Standard packaging: 50 pcs. Custom private label OEM: 200 pcs per production run.
15–20 business days for container and palletized sea/air freight orders.
Fully certified Class 9 DG export with UN38.3 test summaries and compliant MSDS documentation.
Frequently Asked Technical Questions
Q1: What differentiates this battery from generic commodity tool packs?
Unlike commodity packs that utilize repurposed or low-rate storage cells, our packs use brand new Grade-A high-discharge cells (5C/10C rated) combined with pure nickel spot welding and balanced series circuits, preventing premature capacity loss under motor stalls.
Q2: How does the BMS protect the battery during prolonged high-demand drilling?
Our hardware protection circuit constantly monitors individual series cell voltages and pack internal temperature via dual NTC sensors. If temperatures exceed 70°C or continuous current spikes beyond safety limits, the BMS automatically halts discharge to safeguard cell chemistry.
Q3: Can GEB provide private label custom branding and packaging for tool distributors?
Yes. We offer complete OEM services including laser logo engraving, custom-colored ABS plastics, barcode labeling, retail presentation boxes, and verified UN-certified master shipping cartons.
Need Fleet Replacement Units or Wholesale OEM Quotations?
Submit your target tool fleet models, expected order volumes, or private-label customization specs. Our technical sales team provides full mechanical specs, sample units, and FOB/CIF pricing within 24 hours.
