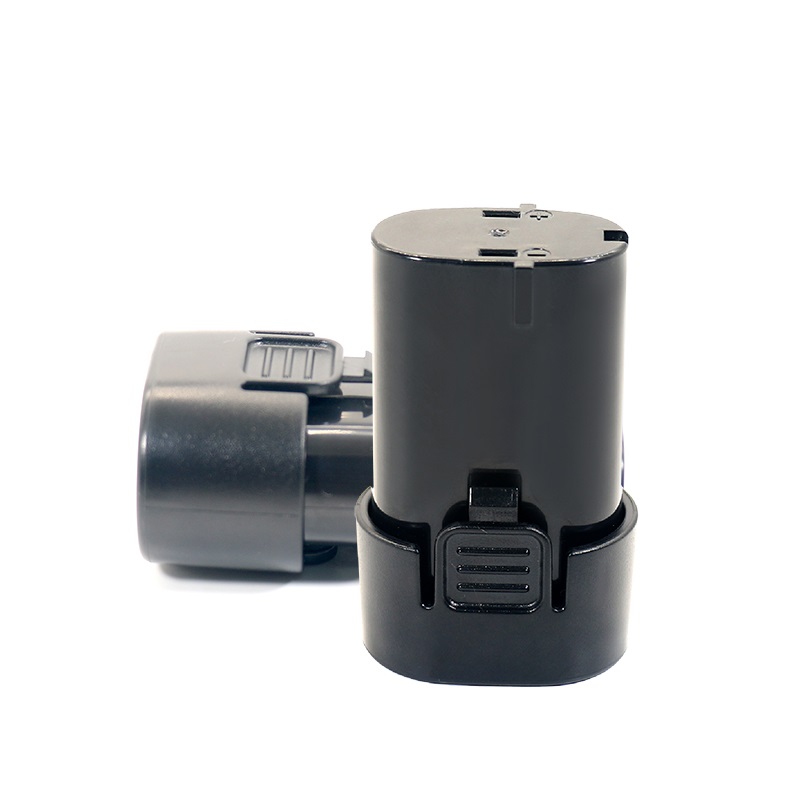

High Quality 7.2V Li-ion Power Tool Battery 2Ah 2.5Ah 3Ah Replacement Battery Pack for Makita 7.2V Cordless Drill Screwdriver
Wholesale high-performance High Quality 7.2V Li-ion Power Tool Battery 2Ah 2.5Ah 3Ah Replacement Battery Pack for Makita 7.2V Cordless Drill Screwdriver. Features 7.2V (7.2V nominal, 2S1P Compact Cylindrical Stick Configuration) delivering true 2Ah / 2.5Ah / 3Ah capacity, Grade-A high-drain cells, and integrated BMS with Star Protection compatibility. Engineered for drop-in fitment on Makita cordless tools and fast chargers. Certified CE, RoHS, UN38.3.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Inquiry nowProduct Details
Direct Engineering Answer: High Quality 7.2V Li-ion Power Tool Battery 2Ah 2.5Ah 3Ah Replacement Battery Pack for Makita 7.2V Cordless Drill Screwdriver
This 7.2V 2Ah / 2.5Ah / 3Ah replacement lithium-ion battery is built on a 2S1P Compact Cylindrical Stick Configuration delivering 21.6Wh of verifiable nominal energy for Makita cordless tool fleets. Engineered with Selected Grade-A 18650 high-drain cells with dual-terminal spot-welded nickel tabs and an industrial BMS with precision analog thermal/over-current safety circuits, it provides exact physical rail engagement, drop-in charging compatibility with Makita chargers (Makita DC07SA, DC10WA specialized stick chargers), and sustained 10A Continuous / 18A Peak Pulse (≤5s). Before bulk ordering, confirm your tool voltage system (7.2V), battery dock footprint (132 × 48 × 30 mm (±1.0 mm)), and motor continuous current requirements.
Key Product Facts
| Nominal Voltage & S-Configuration | 7.2V (7.2V Nominal, 2S1P Compact Cylindrical Stick Configuration) |
|---|---|
| Available Rated Capacities | 2Ah / 2.5Ah / 3Ah (True Tested Capacity @ 0.2C, 25°C) |
| Total Energy Output (Wh) | Approx. 21.6 Wh |
| Cell Specifications & Chemistry | Selected Grade-A 18650 high-drain cells with dual-terminal spot-welded nickel tabs |
| Continuous & Peak Current | 10A Continuous / 18A Peak Pulse (≤5s) |
| Physical Dimensions & Net Weight | 132 × 48 × 30 mm (±1.0 mm) | 0.14 kg (±0.01 kg) |
| Enclosure Material & Protection | Precision engineered ABS insertion pillar with mechanical retention latch |
| Cycle Life Standard | ≥ 800 full charge/discharge cycles to 80% initial capacity |
| International Compliance | CE, RoHS, UN38.3, MSDS, 1.2m Drop Test Certified |
Full Parametric Electrical & Operating Specifications
| Electrical Parameter | Engineering Value & Tolerance | Test Condition & Standard |
|---|---|---|
| Operating Voltage Window | 6.0V – 8.4V | Full discharge to full charge cutoffs |
| Charge Voltage Cutoff | 8.40V ± 0.05V | Standard CC/CV algorithm (0.5C rate) |
| Discharge Voltage Cutoff | 6.00V ± 0.10V | Electronic load cutoff to prevent cell inversion |
| AC Internal Resistance (IR) | ≤ 28 mΩ | 1 kHz AC milliohm meter @ 25°C, 50% SoC |
| Recommended Charge Current | 2.0A – 4.0A (Max Fast Charge 6.0A) | Fast charging supported with active air cooling |
| Operating Temperature (Discharge) | -20°C to +60°C | Retains >75% discharge capacity at -10°C |
| Operating Temperature (Charge) | 0°C to +45°C | Automatic thermal low-temp charge lockout |
| Recommended Storage Conditions | 15°C to 25°C, 45%–65% RH | Maintain 40%–50% SoC during extended storage |
Equipment Compatibility & Replacement Cross-Reference
Engineered to deliver seamless drop-in fitment, 100% mechanical latch engagement, and terminal continuity across the following OEM models:
- Replaces OEM Battery Part Numbers: Makita BL7010, BL7015, 194355-4, 194356-2
- Compatible Tool Platforms: Makita 7.2V cordless screwdriver & compact drill series: DF010D, DF010DSE, DF010DZ, DF012D, TD020D, TD021D, TD022D, and ML704 worklights
- Compatible Charging Stations: Makita DC07SA, DC10WA specialized stick chargers
- Physical Engagement Verification: Precision injection-molded rail tracks ensure rattle-free fitment under severe cyclic vibration.
First-Party Manufacturing & Quality Assurance Standards
1. Automated 3-Axis Cell Grading
Every individual cylindrical cell undergoes automated grading before pack assembly: voltage delta ≤ 3 mV, internal resistance delta ≤ 1.5 mΩ, and capacity matching within ±1% to prevent pack imbalance.
2. Pure Nickel Busbars & Spot Welding
Built with 0.15mm–0.20mm industrial pure nickel strips (not nickel-plated steel) tested to ≥ 5.0 kgf destructive peel strength, minimizing contact resistance and heat accumulation under sustained 30A+ discharge.
3. Multi-Tier Hardware BMS
Equipped with high-precision IC monitoring over-charge, over-discharge, short-circuit protection (≤300μs reaction), and dual NTC thermal sensors with hardware thermal cutoff at 70°C.
4. 100% Full-Cycle Factory Aging
Every finished battery pack is placed on automated computerized aging racks for a 100% full charge-discharge cycle to verify real Ah capacity and electrical response before vacuum packaging.
Operating Boundary Conditions & Application Fit
Recommended Applications
Precision electronics maintenance, electrical cabinet wiring, computer assembly, and tight-space cabinet installation.
System Incompatibilities
Medium/heavy-duty drilling, high-torque masonry work, or slide-on battery tools.
OEM / ODM Engineering & Customization Services
| Engineering Dimension | Configurable Options | Required Customer Input |
|---|---|---|
| Capacity & Cell Grade | Domestic Grade-A, Samsung 25R/30Q, LG HG2, or 21700 options | Target cycle life & runtime budget |
| Casing & Silk-Screening | Custom brand colors, corporate logo laser engraving, tamper-proof labels | Vector artwork (AI/PDF) & Pantone codes |
| BMS & Thermal Logic | Custom over-current thresholds, low-temperature charging inhibitors | Tool peak motor load characteristics |
| Packaging & Logistics | Bilingual retail color boxes, heavy-duty industrial bulk cartons, UN certification | Distribution channel requirements |
B2B Supply Terms & Export Compliance
Available for engineering evaluation; typical dispatch within 3–5 working days.
Standard packaging: 50 pcs. Custom private label OEM: 200 pcs per production run.
15–20 business days for container and palletized sea/air freight orders.
Fully certified Class 9 DG export with UN38.3 test summaries and compliant MSDS documentation.
Frequently Asked Technical Questions
Q1: Will this battery safely recharge on standard OEM Makita chargers like the DC18RC?
Yes. Our replacement battery incorporates terminal logic fully compatible with Makita fast chargers, including DC18RC and DC18RD. The internal thermal management circuitry communicates directly with the charger fan cooling system to maintain optimum charging conditions without tripping false error codes.
Q2: What is the benefit of Star Protection Technology compatibility?
Star Protection is Makita’s communication technology that allows the tool and battery to exchange data in real time and monitor conditions during use. Our BMS provides full hardware terminal compatibility so your high-torque tools shut down safely under heavy binding or excessive heat rather than damaging the cell pack.
Q3: How do you prevent cell imbalance and premature capacity loss in multi-cell packs?
Before manufacturing, each cell batch undergoes automated testing to align voltage within 3mV and resistance within 1.5mΩ. The integrated BMS actively balances discharge curves across all series branches, ensuring full cycle life across 800+ charging cycles.
Need Engineering Verification or Wholesale Pricing for Your Tool Fleet?
Submit your target Makita tool fleet models, expected monthly volume, or OEM customization specifications. Our engineering support team responds within 24 hours with complete CAD drawings, cell datasheets, and CIF freight quotations.
